Product Description

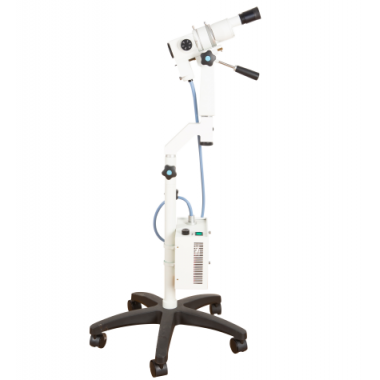

LED COLPOSCOPE FOR GYNECOLOGY

· Crisp image with outstanding contrast, great depth of field and Excellent stereo effect.

· High intensity cold light illumination, without heating

· Reliable and fast positioning, easy for operation

· Prices much lower than comparable colposcope

Specifications

Binoculars - Straight: f’=160 mm

Objective: f’=300 mm

Eyepiece: 12.5x, high-eyepoint, wide angular, pupil exit distance 21mm

Diopter adjustment: -5D to + 5D

Magnification changer - 5 steps: 0.4x, 0.6x, 1x, 1.6x, 2.5x

Total magnifications: 2.8x, 4x, 7x, 11.5x, 17x

Visual field: 80 mm ~ 12.5 mm

Interpupillary distance: 55mm to 75 mm

Focusing: Macro- with stand movement; Micro-range of 40 mm with manual adjustment of rack and pinion

Working distance: 295 mm

ILLUMINATION

Type: Coaxial illumination by optical light-guide system

Cold light source: Halogen lamp, 15V/150W

Illumination control: 3 steps

Field of illumination: 80 mm

Power supply: AC 110V/220V ¨C 200W

Light intensity: 80,000 LUX

Filter: Green

COLUMN AND BASE

Type: Floor type

Rotation angle: 360 degree

Elevation stroke: 170 mm

Height from objective to floor: 1000 mm ~ 1170 mm

Base size： 600mm

Weight：16 kgs

ACCESSORIES

Binoculars： 45 degree inclined binoculars f’=160 mm

Objective：f’=250 mm,350mm, 400 mm

Beamsplitter： dismountable

Adaptor for CCD Camera： f’=65 mm

Integrated B/S and A/D -

CCD Camera -

NOTE: Specifications subject to change without notice
